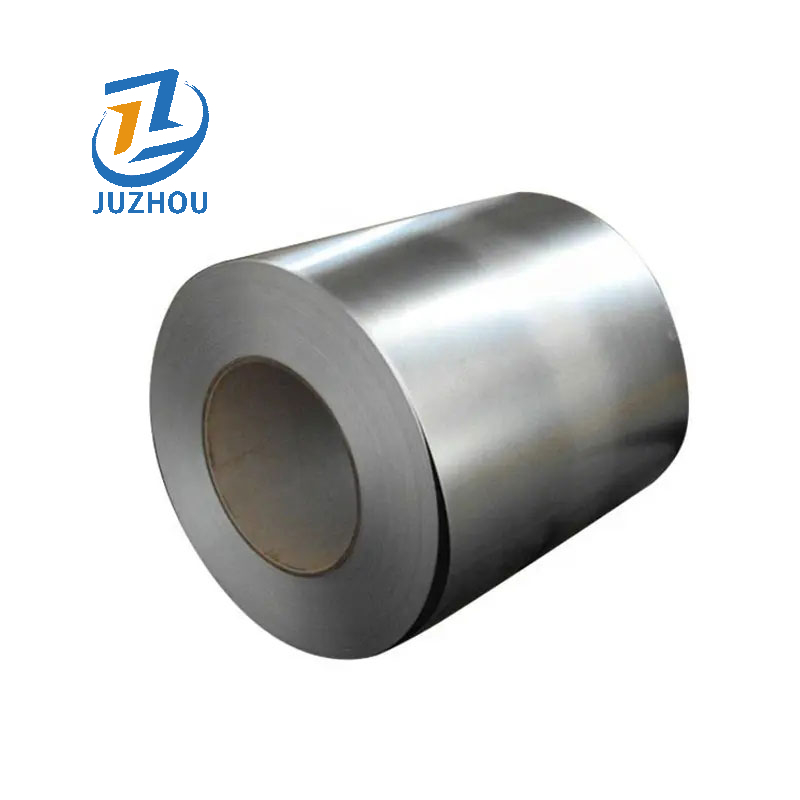

NS3308 Nickel Alloy Coil
Nickel is a highly versatile element with significant beneficial qualities. When alloyed with other elements, nickel maintains numerous applications throughout various industries throughout the world. Some of the significant beneficial qualities that nickel alloy materials displays include low-expansion, high strength, electrical resistance, corrosion resistance, and heat resistance.
+86 19861228651
+86 19861228651
+86 19861228651
Charlee@juzhousteel.com

Product Description


Product Parameter


Prdouct Name
Nickel Alloy Coil
Grade
Hastelloy: Hastelloy B / B-2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N;
Inconel: Inconel 100/600/601/602CA/617/625713/718738/X-750,Carpenter 20;
Incoloy: Incoloy 800/800H/800HT/825/925/926;
Monel: Monel 400/K500
Nimonic: Nimonic 75/80A/90 ;
Thickness
0.8-36mm
Width
650-2000mm
Length
0.8-6 m or Customized
Application
Auto, turbines, blades, powder and engines,etc
Feature
High corrosion resistance, low density, good thermal stability
Surface
Bright, Polished, Pickling, Acid cleaning, Sandblasting
Quality and test
Hardness test, Bending test, Hydrostatic etc.

Nickel is a incredibly flexible detail with significant useful qualities. when alloyed with different factors, nickel maintains numerous applications for the duration of numerous industries for the duration of the world. a number of the sizable useful traits that nickel alloy substances shows consist of low-enlargement, excessive electricity, electrical resistance, corrosion resistance, and heat resistance.





Name

Incoloy020
(NS143/N08020/2.4660)
Incoloy028
(N08028/1.4563)
Incoloy A286
(UNS S66286)
Incoloy 330
(UNS N08830)
Chemical

composition%

Ni
36.0-38.0
30.0-32.0
24.0-27.0
33.0-37.0
C
≤0.06
≤0.02
≤0.08
≤0.15
Mn
≤1.0
≤2
1.0-2.0
≤2.0
P
-
≤0.03
≤0.03
≤0.035
S
-
≤0.01
≤0.02
≤0.03
Si
≤0.8
≤0.7
≤1.0
≤1.5
Cr
19.0-20.0
26.0-28.0
13.5-16.0
14.0-17.0
Fe
36.0-38.0
-
margin
-
Mo
2.0-3.0
3.0-4.0
1.0-1.5
-
Cu
3.0-4.0
0.7-1.5
-
-
Nb
0.5-0.7
3.15-4.15
-
-
Others
-
-
0.1-0.5 (V)
0.001-0.01(B)
≤0.04(Al)
-


It is a heavy non-ferrous metal material composed of nickel as the base and other alloying elements. In order to further improve the physical and chemical properties of nickel and meet the requirements of science and technology and industrial development, it is necessary to add an appropriate amount of alloying elements to nickel.

Nickel alloys belonging to heavy non-ferrous metal materials mainly include nickel alloys for electric vacuum, nickel alloys for thermocouples, Monel alloys, nickel-beryllium alloys, and nickel-based catalyst alloys for synthetic diamonds.

Ingots or castings of nickel alloys are mainly produced by vacuum casting. The cast ingot is firstly hot-rolled, extruded or forged, rolled or stretched after intermediate heat treatment, and finally processed into the desired finished product. Some nickel-based superalloys are directly cast or used to make required parts by powder metallurgy.
