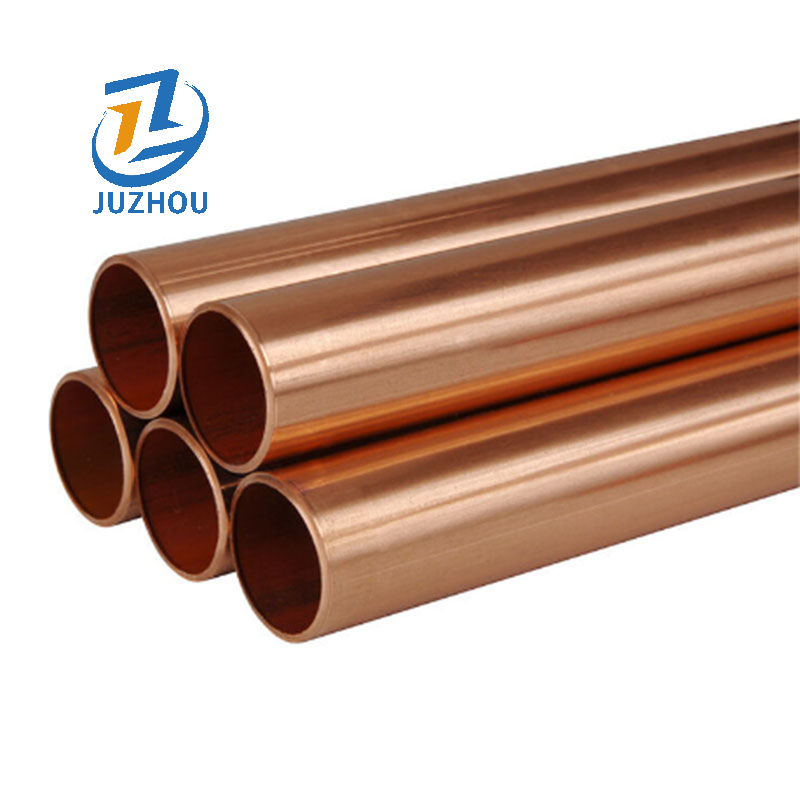

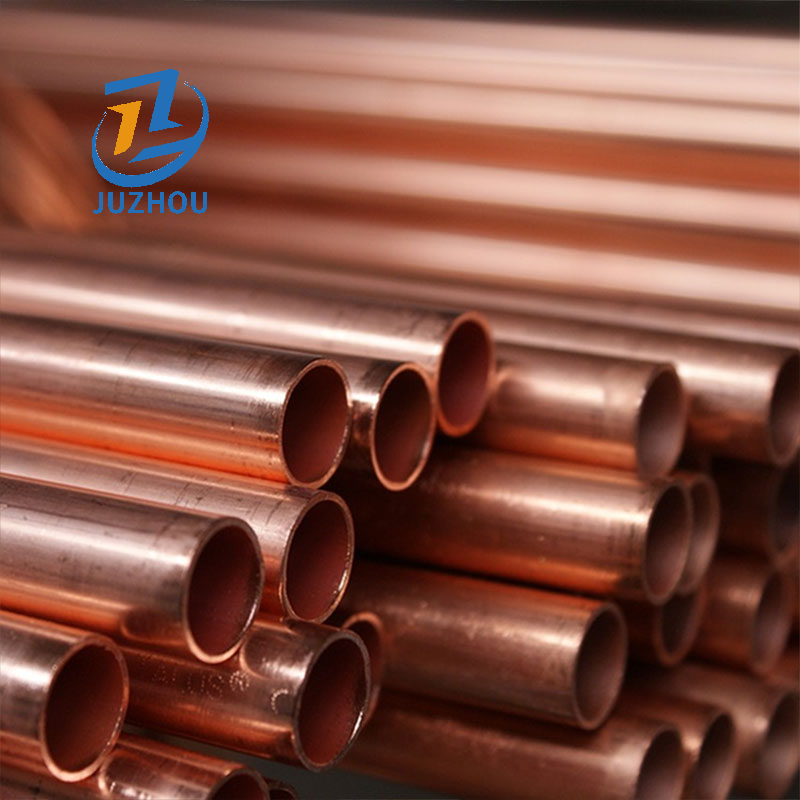

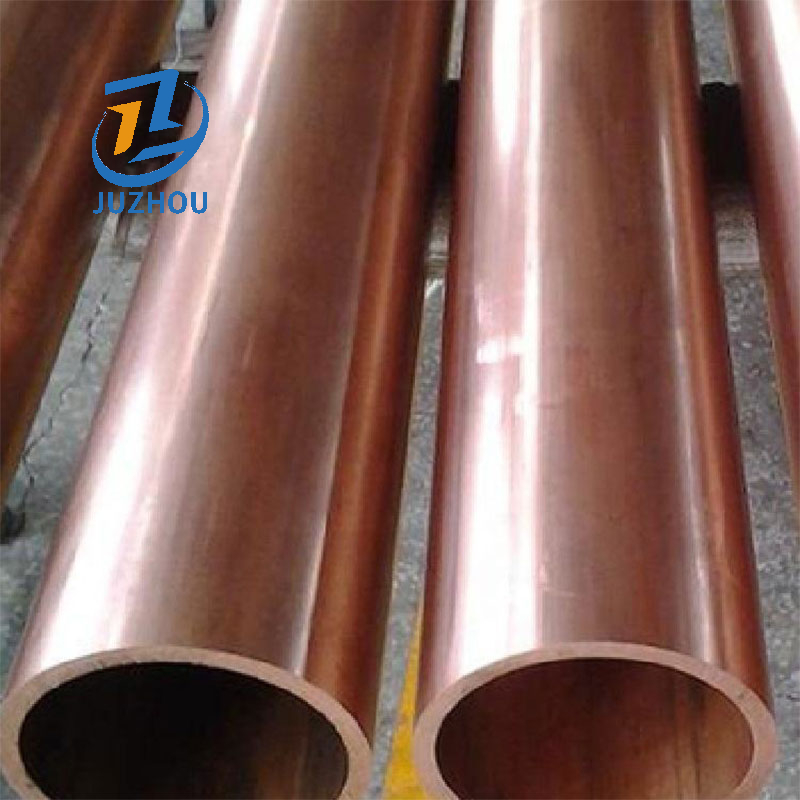

Copper Pipe
Copper pipes (also called copper pipes) are commonly used in water pipes, heating and refrigeration pipes, and can be used in different environments. Copper pipes combine the advantages of metal and non-metal pipes and are used in hot and cold water systems.
+86 19861228651
+86 19861228651
+86 19861228651
Charlee@juzhousteel.com

Product Description


Product Parameter


Product Name

Straight copper pipe/ Pancake coil copper pipe/ Capillary copper pipe

Standard

GB/T1527-2006,JIS H3300-2006,ASTM B75M,ASTMB42,ASTMB111,ASTMB395,
ASTM B359,ASTM B188,ASTM B698,ASTM B640,etc





Material

T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,
TP1,TP2,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,

TU1,TU2,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200,

C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300,

C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600,C70620,C71000,

C71500,C71520,C71640,C72200,etcGB/T17791-2007,GB/T1527-2006, GB/T18033-2007,

YS/T450-2002 ASTM B280,ASTM B68,ASTM B75,ASTM B88 EN12735,AS1571,JIS H3300,etc.

Shape

Round,Square,Rectangular,Oval,half-round

Round

OD:2-914mm (1/16"-36")
WT:0.2-120mm(SCH5S-SCH160S)

Square

Size:2*2-1016*1016mm(1/16"-40")
WT0.2-120mm

Rectangular

Size:2*4-1016*1219mm(1/16"-48")
WT:0.2-120mm

Hardness

1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc

Surface

mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required

Length

1m,2m,3m,6m,or as required

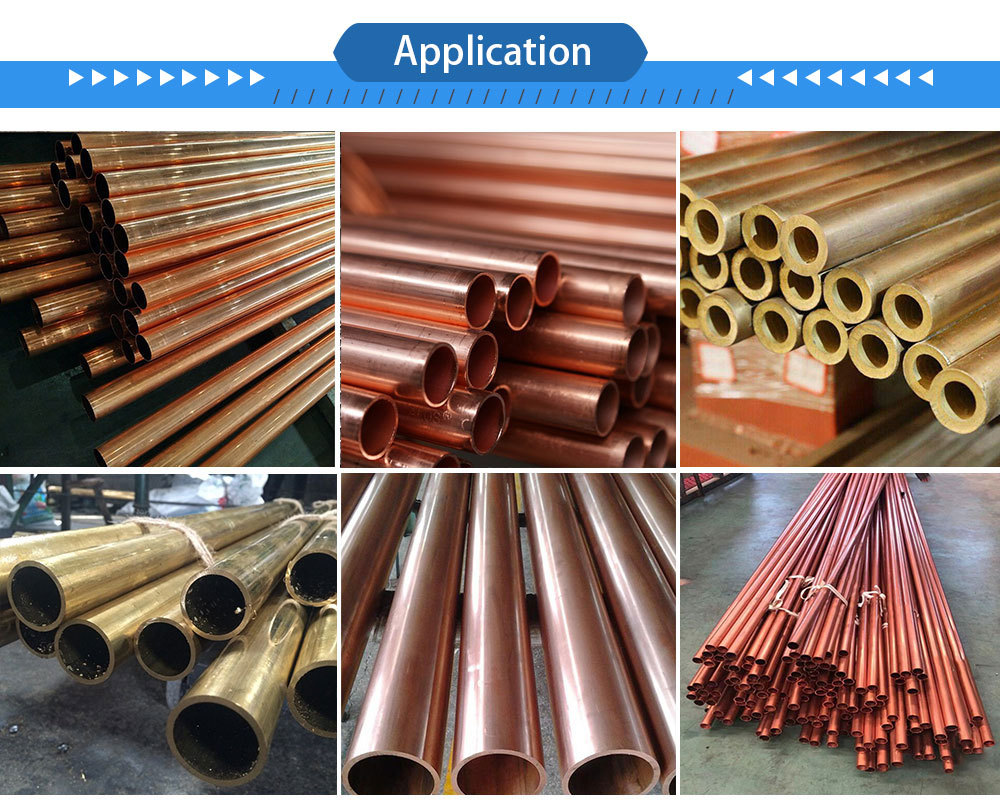

Application

Widely used inair conditioners,refrigerators,electric,solar water heater, polished pipe an be used in decorative,such asstairrail.




Advantage:

Copper pipes are hard, not easy to corrode, are resistant to high temperatures and high pressures, and can be used in a variety of environments. In comparison, the shortcomings of many other pipes are obvious. For example, galvanized steel pipes, which were commonly used in residential buildings in the past, are easily corroded. After a short period of use, the tap water will turn yellow and the water flow will become smaller. The strength of some materials will rapidly decrease at high temperatures, which may cause unsafe risks when used in hot water pipes. The melting point of copper is as high as 1083 degrees Celsius, and the temperature of the hot water system is insignificant to copper pipes.




After-Sales Service:

1.Technical Support by phone Whatsapp or email around the clock

2.Problems will be dealt with as soon as possible according to the situation








Sleepers under the steel plate, fixed with steel straps.

Container:

20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)
20feet container load 25tons coils whose length is under 5.8m
40feet container load 25tons coils whose length is under 11.8m

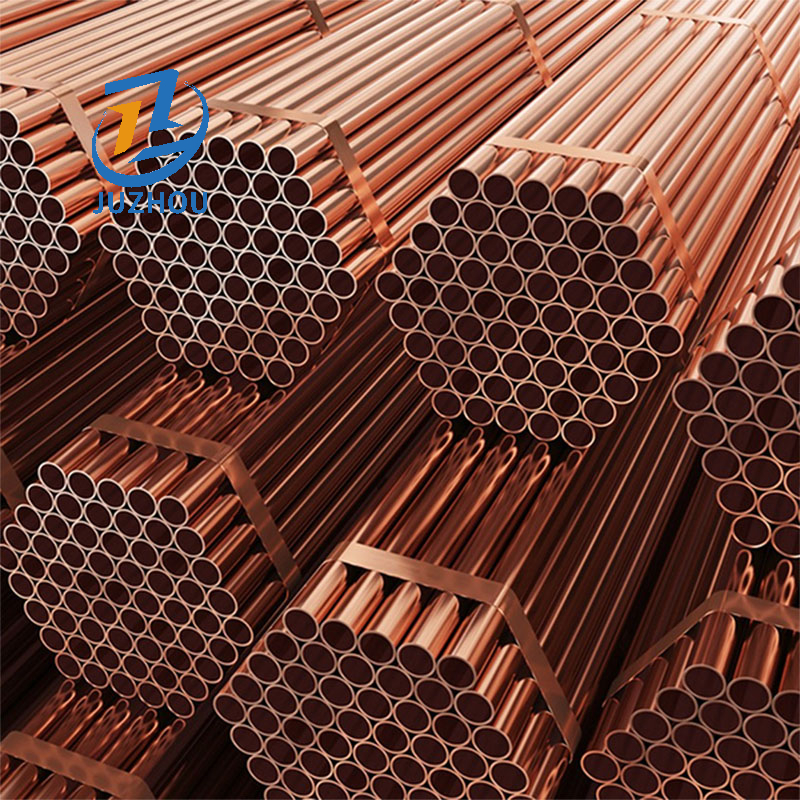

Packing Details : Bundle with steel strip
Delivery Details : Use trays to facilitate loading and unloading

Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
